uCube: control platform for power electronics

Galassini, Alessandro; Lo Calzo, Giovanni; Formentini, Andrea; Gerada, C.; Zanchetta, Pericle; Costabeber, Alessando

Authors

Alessandro Galassini Alessandro.Galassini@nottingham.ac.uk

Giovanni Lo Calzo ezzgl1@exmail.nottingham.ac.uk

Andrea Formentini ezzaf1@exmail.nottingham.ac.uk

C. Gerada chris.gerada@nottingham.ac.uk

Pericle Zanchetta pericle.zanchetta@nottingham.ac.uk

Alessando Costabeber alessandro.costabeber@nottingham.ac.uk



Abstract

This paper presents a versatile tool for development, control and testing of power electronics converters. In the last decade, many different expensive off-the-shelf tools for rapid prototyping and testing have been developed and commercialised by few market players. Recently, the increasing diffusion of low cost, Do It Yourself targeted development tools gained market shares previously controlled by conventional players. This trend has been driven by the fact that, despite their lower performances, many of these low cost systems are powerful enough to develop simple power electronics systems for learning and teaching purposes. This paper describes a control platform developed within the University of Nottingham, targeting at the market and application segment in between the expensive off-the-shelf control boards and the low cost emerging systems. The platform is based on the Microzed evaluation board, equipped with the Xilinx Zynq System-on-Chip. Its flexibility, features and performances will be addressed and examples of how they are being experimentally validated on different rigs will be provided.

Publication Date Jun 15, 2017
Peer Reviewed Peer Reviewed
APA6 Citation Galassini, A., Lo Calzo, G., Formentini, A., Gerada, C., Zanchetta, P., & Costabeber, A. (2017). uCube: control platform for power electronics. doi:10.1109/WEMDCD.2017.7947749
DOI https://doi.org/10.1109/WEMDCD.2017.7947749
Keywords Power Electronics, Control board, Control plat¬form, Power converters, Zynq, Microzed, uCube, Control
Publisher URL http://ieeexplore.ieee.org/abstract/document/7947749/
Related Public URLs http://w1.icem.cc/wemdcd2017/
Copyright Statement Copyright information regarding this work can be found at the following address: http://eprints.nottingh.../end_user_agreement.pdf
Additional Information © 2017 IEEE. Personal use of this material is permitted. Permission from IEEE must be obtained for all other uses, in any current or future media, including reprinting/republishing this material for advertising or promotional purposes, creating new collective works, for resale or redistribution to servers or lists, or reuse of any copyrighted component of this work in other works.

Files

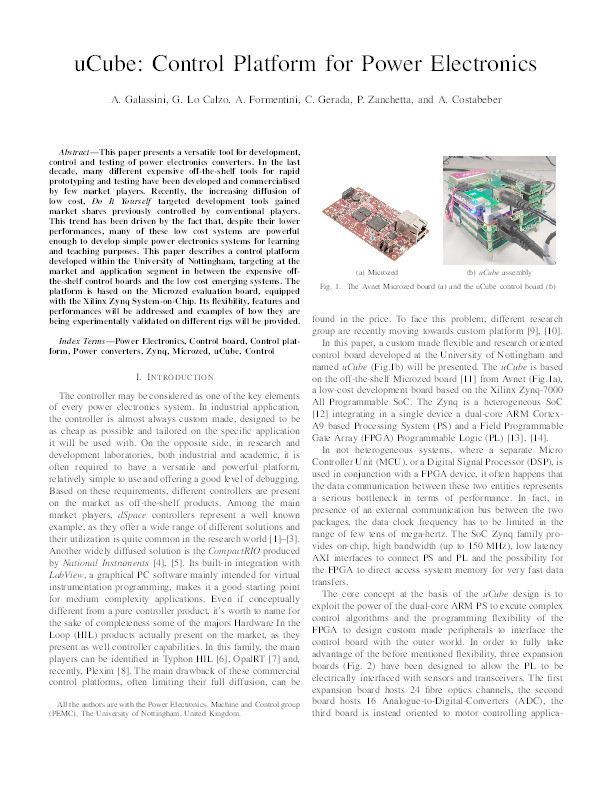

uCube Control platform for power electronics.pdf (2 Mb)
