HVOF and laser cladded Fe-Cr-B coating in simulated biomass combustion: microstructure and fireside corrosion

Reddy, Liam; Shipway, P.H.; Davis, Colin; Hussain, Tanvir


Liam Reddy

Colin Davis

Professor of Coatings and Surface Engineering


Biomass is often considered as a low carbon alternative to fossil fuels in the power industry. However the heat exchangers in biomass plants can suffer from chloride based aggressive fireside corrosion. A commercially available amorphous Fe-Cr-B alloy was deposited onto a stainless steel substrate by HVOF thermal spray and laser cladding. The controlled environment corrosion tests were conducted in a HCl rich environment at 700°C for 250 h with and without KCl deposits. The samples were examined with XRD, SEM and EDX mapping to understand the corrosion mechanisms. In the absence of any deposits, the amorphous HVOF coating performed very well with a thin oxide growth whereas the crystalline laser cladding suffered from ~350 μm metal loss. The scales were composed of MnWO₄, Fe₂O₃, Fe₃O₄ and Cr₂O₃. When a KCl deposit was present, the HVOF sprayed coating delaminated from the substrate and MnCl₂ was found in the scale.


Reddy, L., Shipway, P., Davis, C., & Hussain, T. (in press). HVOF and laser cladded Fe-Cr-B coating in simulated biomass combustion: microstructure and fireside corrosion. Oxidation of Metals,

Journal Article Type Article
Acceptance Date Mar 30, 2017
Online Publication Date Apr 7, 2017
Deposit Date Apr 5, 2017
Publicly Available Date Apr 7, 2017
Journal Oxidation of Metals
Print ISSN 0030-770X
Electronic ISSN 1573-4889
Publisher Springer Verlag
Peer Reviewed Peer Reviewed
Keywords Laser cladding; HVOF; Nanosteel; Fe-Cr-B; Fireside corrosion; Coatings; Biomass corrosion
Public URL
Publisher URL

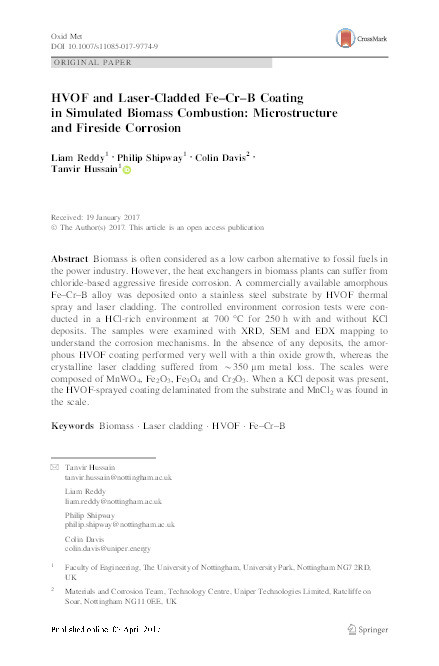

HVOF art%3A10.1007%2Fs11085-017-9774-9.pdf (1.7 Mb)
