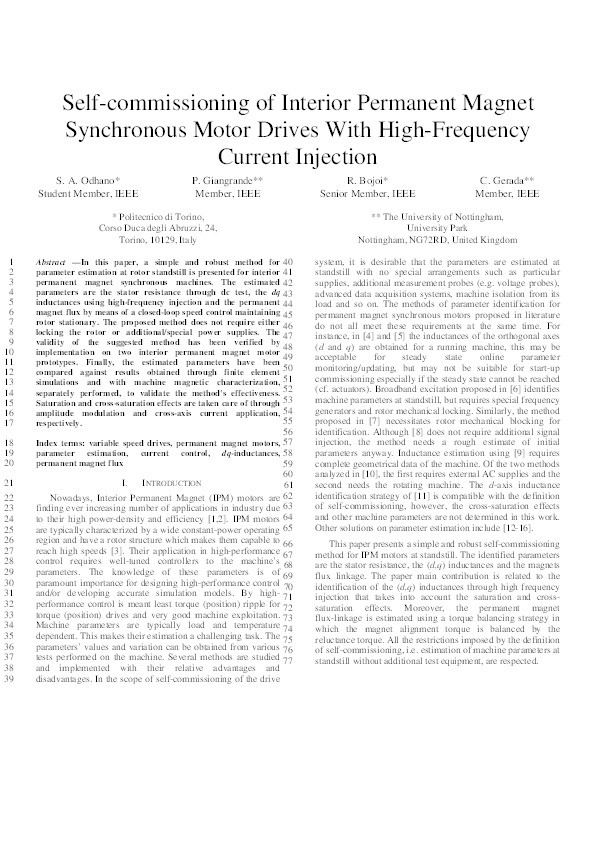

Self-commissioning of interior permanent- magnet synchronous motor drives with high-frequency current injection

Odhano, S; Giangrande, Paolo; Bojoi, R.I.; Gerada, C.

Abstract

In this paper, a simple and robust method for parameter estimation at rotor standstill is presented for interior permanent magnet (IPM) synchronous machines. The estimated parameters are the stator resistance through dc test, the dq inductances using high-frequency injection, and the permanent magnet flux by means of a closed-loop speed control maintaining rotor stationary. The proposed method does not require either locking the rotor or additional/special power supplies. The validity of the suggested method has been verified by implementation on two IPM motor prototypes. Finally, the estimated parameters have been compared against results obtained through finite-element simulations and with machine magnetic characterization, separately performed, to validate the method's effectiveness. Saturation and cross-saturation effects are taken care of through amplitude modulation and cross-axis current application, respectively.

Citation

Odhano, S., Giangrande, P., Bojoi, R., & Gerada, C. (2014). Self-commissioning of interior permanent- magnet synchronous motor drives with high-frequency current injection. IEEE Transactions on Industry Applications, 50(5), https://doi.org/10.1109/TIA.2014.2309722

• Journal Article Type: Article
• Acceptance Date: Feb 10, 2014
• Publication Date: Mar 4, 2014
• Deposit Date: Aug 30, 2016
• Publicly Available Date: Aug 30, 2016
• Journal: IEEE Transactions on Industry Applications
• Print ISSN: 0093-9994
• Electronic ISSN: 1939-9367
• Publisher: Institute of Electrical and Electronics Engineers
• Peer Reviewed: Peer Reviewed
• Volume: 50
• Issue: 5
• DOI: https://doi.org/10.1109/TIA.2014.2309722
• Keywords: Torque, Rotors, Resistance, Estimation, Voltage control, Stators, Synchronous motors; synchronous motor drives, angular velocity control, machine control, parameter estimation, permanent magnet motors, stators; saturation effects, interior permanent- magn
• Public URL: https://nottingham-repository.worktribe.com/output/725855
• Publisher URL: http://ieeexplore.ieee.org/document/6755536/?arnumber=6755536
• Additional Information: ©2014 IEEE. Personal use of this material is permitted. Permission from IEEE must be obtained for all other users, including reprinting/ republishing this material for advertising or promotional purposes, creating new collective works for resale or redistribution to servers or lists, or reuse of any copyrighted components of this work in other works.
