Chenghao Yang
Geometric constraint-based modeling and analysis of a novel continuum robot with Shape Memory Alloy initiated variable stiffness
Yang, Chenghao; Geng, Shineng; Walker, Ian; Branson, David T.; Liu, Jinguo; Dai, Jian S.; Kang, Rongjie
Authors
Shineng Geng
Ian Walker
DAVID BRANSON DAVID.BRANSON@NOTTINGHAM.AC.UK
Professor of Dynamics and Control
Jinguo Liu
Jian S. Dai
Rongjie Kang
Abstract
Continuum robots exhibit promising adaptability and dexterity for soft manipulation due to their intrinsic compliance. However, this compliance may lead to challenges in modeling as well as positioning and loading. In this paper, a virtual-work based static model is established to describe the deformation and mechanics of continuum robots with a generic rod-driven structure, taking the geometric constraint of the drive rods into account. Following this, this paper presents a novel variable-stiffness mechanism powered by a set of embedded Shape Memory Alloy (SMA) springs, which can make the drive rods 'locked' on the body structure with different configurations. The resulting effects of variable stiffness are then presented in the static model by introducing tensions of the SMA and friction on the rods. Compared with conventional models, there is no need to predefine the actuation forces of the drive rods, but only actuation displacements are used in this new mechanism system with stiffness being regulated. As a result, the phenomenon that the continuum robot can exhibit an S-shaped curve when subject to single-directional forces is observed and analyzed. Simulations and experiments demonstrated that the presented mechanism has the stiffness variation over 287% and further demonstrated that the mechanism and its model are achievable with good accuracy that the ratio of positioning error has less than 2.23% at the robot end-effector to the robot length.
Journal Article Type | Article |
---|---|
Acceptance Date | Jan 19, 2020 |
Online Publication Date | Apr 13, 2020 |
Publication Date | Dec 1, 2020 |
Deposit Date | Jan 29, 2020 |
Publicly Available Date | Apr 13, 2020 |
Journal | The International Journal of Robotics Research |
Print ISSN | 0278-3649 |
Electronic ISSN | 1741-3176 |
Publisher | SAGE Publications |
Peer Reviewed | Peer Reviewed |
Volume | 39 |
Issue | 14 |
Pages | 1620-1634 |
DOI | https://doi.org/10.1177/0278364920913929 |
Keywords | Soft continuum robot; Variable stiffness; Statics model; Geometric constraint |
Public URL | https://nottingham-repository.worktribe.com/output/3828044 |
Publisher URL | https://journals.sagepub.com/doi/abs/10.1177/0278364920913929 |
Files

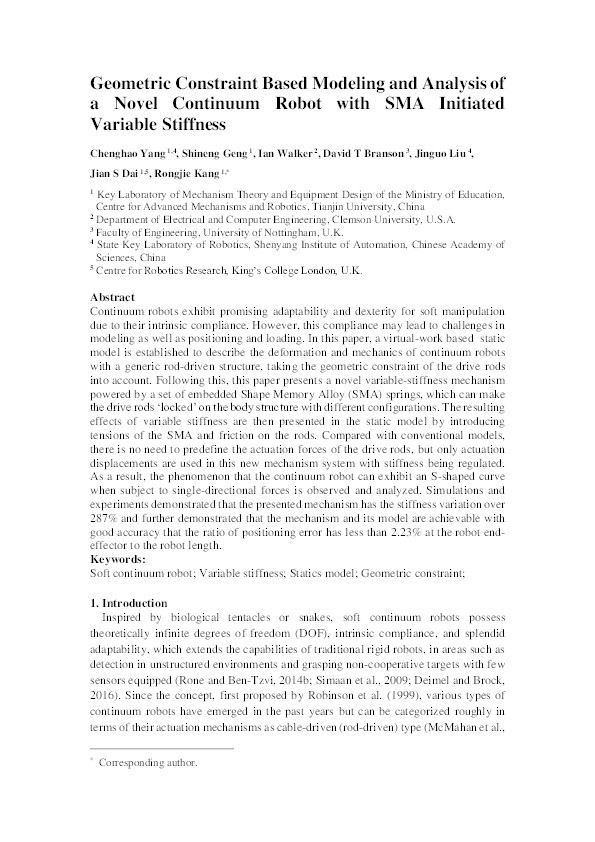

R2-0112-Geometric Constraint Based Modeling And Analysis Of A Novel Cont..
(1.6 Mb)
PDF
