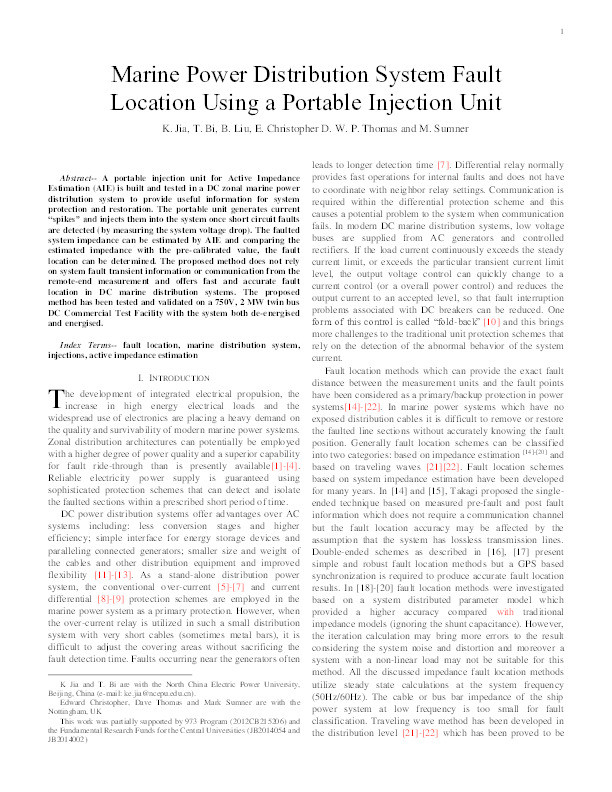

Marine power distribution system fault location using a portable injection unit

Jia, Ke; Bi, Tianshu; Liu, Bohan; Christopher, Edward; Thomas, David W.P.; Sumner, M.

Abstract

A portable injection unit for Active Impedance Estimation (AIE) is built and tested in a DC zonal marine power distribution system to provide useful information for system protection and restoration. The portable unit generates current “spikes” and injects them into the system once short circuit faults are detected (by measuring the system voltage drop). The faulted system impedance can be estimated by AIE and comparing the estimated impedance with the pre-calibrated value, the fault location can be determined. The proposed method does not rely on system fault transient information or communication from the remote-end measurement and offers fast and accurate fault location in DC marine distribution systems. The proposed method has been tested and validated on a 750V, 2 MW twin bus DC Commercial Test Facility with the system both de-energised and energised.

Citation

Jia, K., Bi, T., Liu, B., Christopher, E., Thomas, D. W., & Sumner, M. (2015). Marine power distribution system fault location using a portable injection unit. IEEE Transactions on Power Delivery, 30(2), https://doi.org/10.1109/TPWRD.2014.2364259

• Journal Article Type: Article
• Acceptance Date: Oct 16, 2014
• Online Publication Date: Oct 31, 2014
• Publication Date: Apr 1, 2015
• Deposit Date: May 17, 2016
• Publicly Available Date: May 17, 2016
• Journal: IEEE Transactions on Power Delivery
• Print ISSN: 0885-8977
• Electronic ISSN: 1937-4208
• Publisher: Institute of Electrical and Electronics Engineers
• Peer Reviewed: Peer Reviewed
• Volume: 30
• Issue: 2
• DOI: https://doi.org/10.1109/TPWRD.2014.2364259
• Keywords: fault location, marine distribution system, injections, active impedance estimation
• Public URL: https://nottingham-repository.worktribe.com/output/984259
• Publisher URL: http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=6942237
• Additional Information: c2015 IEEE. Personal use of this material is permitted. Permission from IEEE must be obtained for all other users, including reprinting/ republishing this material for advertising or promotional purposes, creating new collective works for resale or redistribution to servers or lists, or reuse of any copyrighted components of this work in other works.
• Contract Date: May 17, 2016
