Design optimization of integrated rotational inductor for high-speed AC drive applications

Khowja, M. Raza; Gerada, C.; Vakil, Gaurang; Patel, Chintanbai; Wheeler, Patrick

Authors

M. Raza Khowja

Chintanbai Patel ezzcp@exmail.nottingham.ac.uk



Abstract

In order to make an efficient and power dense overall system, a close physical and functional integration of passive components is required instead of having a separate sub¬system for passives. Such power dense system is vital in aerospace and marine applications. This paper presents the design optimization of integrated rotational inductors for high speed AC drive applications. Design degrees of freedom like slot-pole combinations along with different winding configurations such as, single layer (SL), double layer (DL), concentrated winding (CW) and distributed winding (DW) are considered. In this paper, the rotational inductors are optimized for these degrees of freedom and compared with a benchmark EE core inductor in terms of total losses, weight and AC copper resistance at both fundamental frequency (1 kHz) and switching frequency (10, 15 and 20 kHz). The comparative analysis between EE core and rotational inductors has shown a significant reduction in total losses and AC copper resistance at fundamental frequency and all switching frequencies. In comparison with EE core inductor, 12 slots 2 poles rotational inductor with SL DW gives lowest total losses at fundamental frequency whereas 6 slots 2 poles rotational inductor with SL DW offers the lowest AC copper resistance at both fundamental and all switching frequencies.

Citation

Khowja, M. R., Gerada, C., Vakil, G., Patel, C., & Wheeler, P. (2017). Design optimization of integrated rotational inductor for high-speed AC drive applications

Conference Name IEEE International Electric Machines and Drives Conference
End Date May 24, 2017
Acceptance Date Mar 31, 2017
Publication Date May 22, 2017
Deposit Date Jun 7, 2017
Publicly Available Date Jun 7, 2017
Peer Reviewed Peer Reviewed
Keywords EE core inductor, Integrated rotational inductors, Concentrated winding and distributed winding
Public URL http://eprints.nottingham.ac.uk/id/eprint/42680
Related Public URLs http://www.iemdc.org/
Copyright Statement Copyright information regarding this work can be found at the following address: http://eprints.nottingh.../end_user_agreement.pdf
Additional Information © 2017 IEEE. Personal use of this material is permitted. Permission from IEEE must be obtained for all other uses, in any current or future media, including reprinting/republishing this material for advertising or promotional purposes, creating new collective works, for resale or redistribution to servers or lists, or reuse of any copyrighted component of this work in other works.

Files

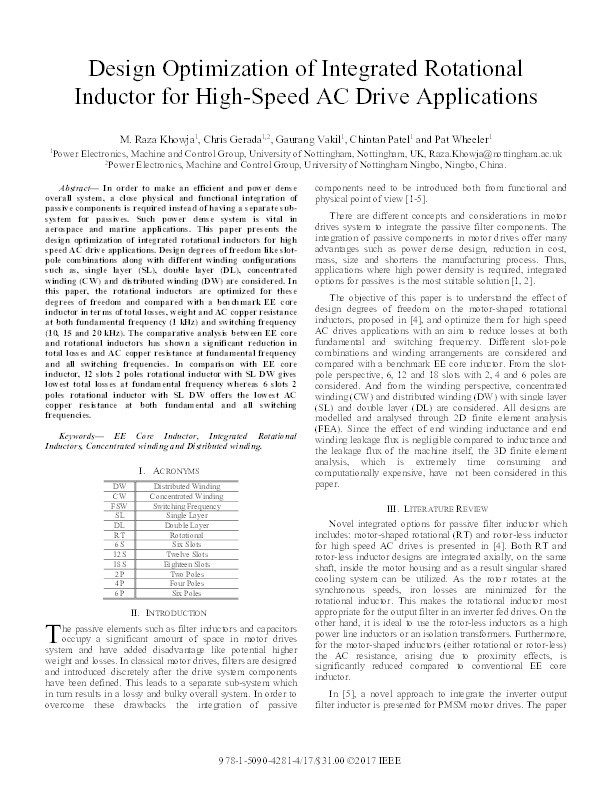

Design optimization of integrated rotational indusctor for high-speed AC drive applications.pdf (478 Kb)
PDF

Copyright Statement
Copyright information regarding this work can be found at the following address: http://eprints.nottingham.ac.uk/end_user_agreement.pdf
