Investigation into the applicability of Bond Work Index (BWI) and Hardgrove Grindability Index (HGI) tests for several biomasses compared to Colombian La Loma coal

Williams, Orla; Eastwick, Carol; Kingman, S.W.; Giddings, Donald; Lormor, Stephen; Lester, Edward

Authors

CAROL EASTWICK CAROL.EASTWICK@NOTTINGHAM.AC.UK
Professor of Mechanical Engineering

SAM KINGMAN sam.kingman@nottingham.ac.uk
Pro-Vice Chancellorfaculty of Engineering

Stephen Lormor



Abstract

With increasing quantities of biomass being combusted in coal fired power stations, there is an urgent need to be able to predict the grindability of biomass in existing coal mills, but currently no standard biomass grindability test exists. In this study, the applicability of the Hardgrove Grindability Index (HGI) and Bond Work Index (BWI) as standard grindability tests for biomass were investigated for commercially sourced wood pellets, steam exploded pellets, torrefied pellets, sunflower pellets, eucalyptus pellets, miscanthus pellets, olive cake and Colombian La Loma coal. HGI predicts the behaviour of fuels in vertical spindle mills and BWI for tube and ball mills. Compared to La Loma (HGI of 46), all biomasses tested performed poorly with low HGI values (14–29). Miscanthus pellets had the highest BWI or Wi at 426 kW h/t. Despite similar HGI values, some untreated biomasses showed lower BWI values (Eucalyptus pellets Wi 87 kW h/t, HGI 22) compared to others (sunflower pellets Wi 366 kW h/t, HGI 20). Torrefied pellets had the lowest Wi (16 kW h/t), with La Loma coal at 23 kW h/t. Wood, miscanthus and sunflower pellets exhibited mill choking during the BWI test, as the amount of fines produced did not increase with an increasing revolution count. An approximate correlation between HGI and BWI was found for the biomass samples which did not experience mill choking in the BWI test. Milling results in this paper suggest that biomass pellets should be composed of pre-densified particles close to the target size in order to minimise the energy use in mills and possibility of mill choking. Our findings would also suggest that the BWI is a valid test for predicting the potential for mill choking of biomass in a tube and ball mill. HGI, however, appears to be a poor method of predicting the grindability of biomass in vertical spindle mills. A new standard grindability test is required to test the grindability of biomasses in such mills.

Journal Article Type Article
Publication Date May 26, 2015
Journal Fuel
Print ISSN 0016-2361
Electronic ISSN 1873-7153
Publisher Elsevier
Peer Reviewed Peer Reviewed
Volume 158
APA6 Citation Williams, O., Eastwick, C., Kingman, S., Giddings, D., Lormor, S., & Lester, E. (2015). Investigation into the applicability of Bond Work Index (BWI) and Hardgrove Grindability Index (HGI) tests for several biomasses compared to Colombian La Loma coal. Fuel, 158, https://doi.org/10.1016/j.fuel.2015.05.027
DOI https://doi.org/10.1016/j.fuel.2015.05.027
Keywords Bond Work Index (BWI), Hardgrove Grindability Index (HGI), Biomass, Coal, Energy Consumption, Thermogravimetric Analysis
Publisher URL http://www.sciencedirect.com/science/article/pii/S0016236115005232
Copyright Statement Copyright information regarding this work can be found at the following address: http://creativecommons.org/licenses/by/4.0

Files

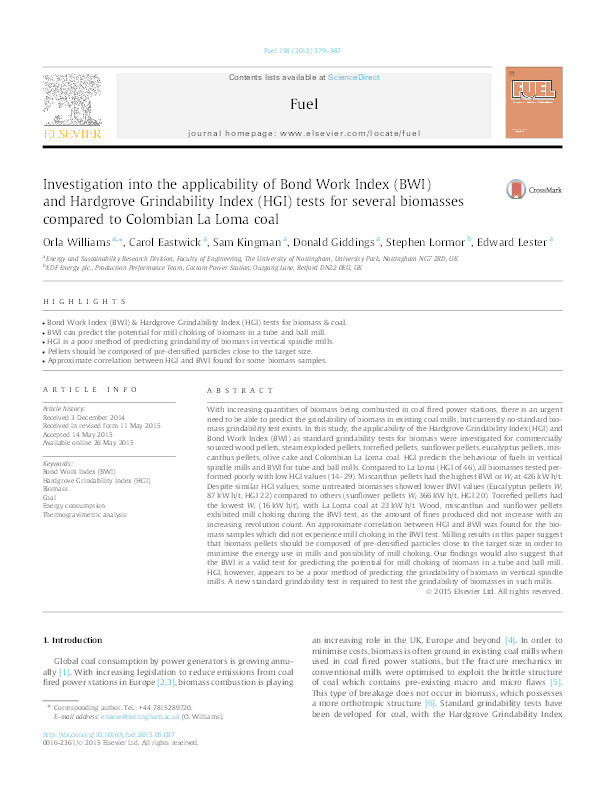

BWI-HGI Fuel Paper.pdf (2.1 Mb)
PDF

Copyright Statement
Copyright information regarding this work can be found at the following address: http://creativecommons.org/licenses/by/4.0
