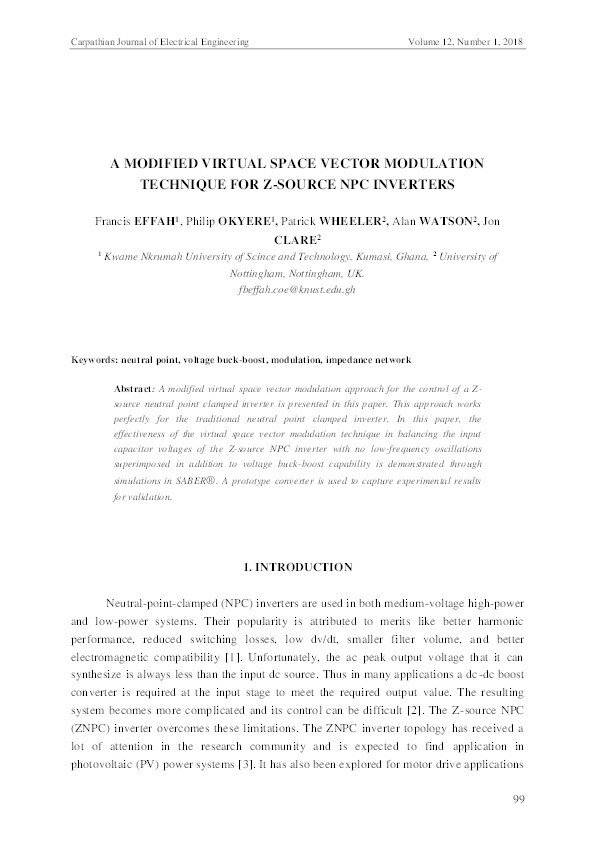

A modified virtual space vector modulation technique for Z-source NPC inverters

Effah, Francis; Okyere, Philip; Patrick, Wheeler,; Alan, Watson,; Clare, Jon

Abstract

A modified virtual space vector modulation approach for the control of a Z-source neutral point clamped inverter is presented in this paper. This approach works perfectly for the traditional neutral point clamped inverter. In this paper, the effectiveness of the virtual space vector modulation technique in balancing the input capacitor voltages of the Z-source NPC inverter with no low-frequency oscillations superimposed in addition to voltage buck-boost capability is demonstrated through simulations in SABER®. A prototype converter is used to capture experimental results for validation.

Citation

Effah, F., Okyere, P., Patrick, W., Alan, W., & Clare, J. (2018). A modified virtual space vector modulation technique for Z-source NPC inverters. Carpathian Journal of Electrical Engineering, 12(1), 99--113

• Journal Article Type: Article
• Acceptance Date: Jan 1, 2018
• Online Publication Date: Jan 1, 2018
• Publication Date: Jan 1, 2018
• Deposit Date: Nov 20, 2024
• Publicly Available Date: Dec 3, 2024
• Journal: Carpathian Journal of Electrical Engineering
• Print ISSN: 1843-7583
• Publisher: Universitatea Tehnica Cluj-Napoca
• Peer Reviewed: Peer Reviewed
• Volume: 12
• Issue: 1
• Pages: 99--113
• Keywords: neutral point, voltage buck-boost, modulation, impedance network
• Public URL: https://nottingham-repository.worktribe.com/output/36292767
• Publisher URL: http://cee.cunbm.utcluj.ro/wp-content/uploads/2018/12/CJEE20187.pdf
