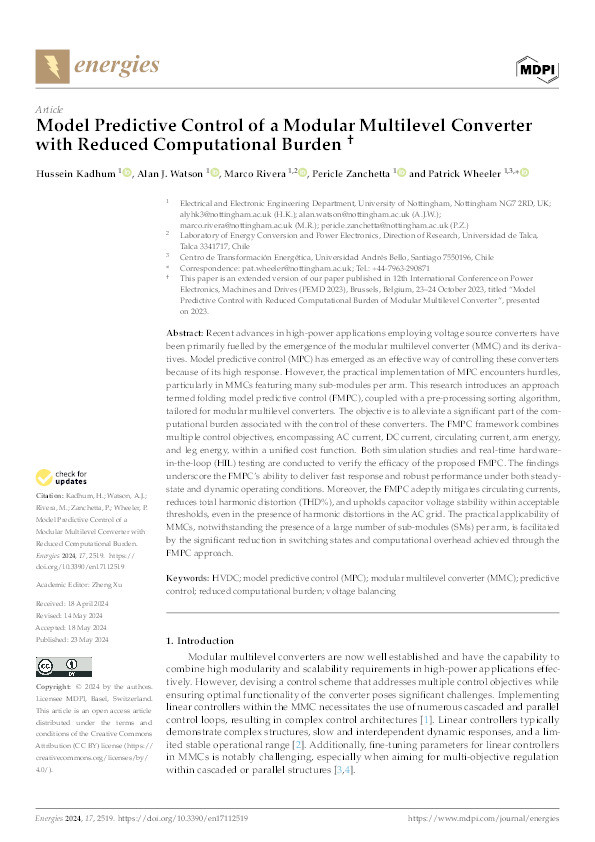

Model Predictive Control of a Modular Multilevel Converter with Reduced Computational Burden

Kadhum, Hussein; Watson, Alan J.; Rivera, Marco; Zanchetta, Pericle; Wheeler, Patrick

Abstract

Recent advances in high-power applications employing voltage source converters have been primarily fuelled by the emergence of the modular multilevel converter (MMC) and its derivatives. Model predictive control (MPC) has emerged as an effective way of controlling these converters because of its high response. However, the practical implementation of MPC encounters hurdles, particularly in MMCs featuring many sub-modules per arm. This research introduces an approach termed folding model predictive control (FMPC), coupled with a pre-processing sorting algorithm, tailored for modular multilevel converters. The objective is to alleviate a significant part of the computational burden associated with the control of these converters. The FMPC framework combines multiple control objectives, encompassing AC current, DC current, circulating current, arm energy, and leg energy, within a unified cost function. Both simulation studies and real-time hardware-in-the-loop (HIL) testing are conducted to verify the efficacy of the proposed FMPC. The findings underscore the FMPC’s ability to deliver fast response and robust performance under both steady-state and dynamic operating conditions. Moreover, the FMPC adeptly mitigates circulating currents, reduces total harmonic distortion (THD%), and upholds capacitor voltage stability within acceptable thresholds, even in the presence of harmonic distortions in the AC grid. The practical applicability of MMCs, notwithstanding the presence of a large number of sub-modules (SMs) per arm, is facilitated by the significant reduction in switching states and computational overhead achieved through the FMPC approach.

Citation

Kadhum, H., Watson, A. J., Rivera, M., Zanchetta, P., & Wheeler, P. (2024). Model Predictive Control of a Modular Multilevel Converter with Reduced Computational Burden. Energies, 17(11), Article 2519. https://doi.org/10.3390/en17112519

• Journal Article Type: Article
• Acceptance Date: May 18, 2024
• Online Publication Date: May 23, 2024
• Publication Date: 2024-06
• Deposit Date: Jun 3, 2024
• Publicly Available Date: Jun 4, 2024
• Journal: Energies
• Electronic ISSN: 1996-1073
• Publisher: MDPI
• Peer Reviewed: Peer Reviewed
• Volume: 17
• Issue: 11
• Article Number: 2519
• DOI: https://doi.org/10.3390/en17112519
• Keywords: HVDC; model predictive control (MPC); modular multilevel converter (MMC); predictive control; reduced computational burden; voltage balancing
