Impact of the Field Winding Interturn Short-Circuit Position on Rotor Vibration Properties in Synchronous Generators

Yuan, Xing Hua; He, Yu Ling; Liu, Man Yu; Wang, Hui; Wan, Shu Ting; Vakil, Gaurang

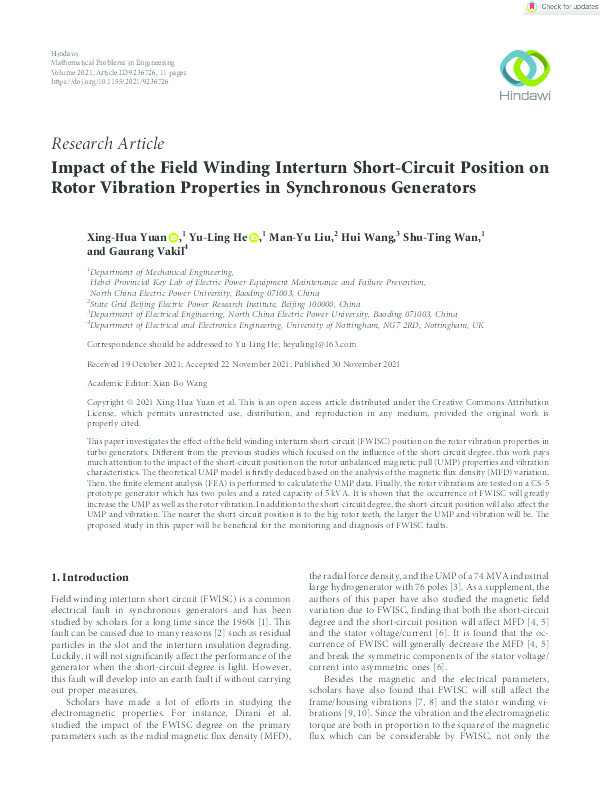

Impact of the Field Winding Interturn Short-Circuit Position on Rotor Vibration Properties in Synchronous Generators Thumbnail


Authors

Xing Hua Yuan

Yu Ling He

Man Yu Liu

Hui Wang

Shu Ting Wan



Contributors

Xian-Bo Wang
Editor

Abstract

This paper investigates the effect of the field winding interturn short-circuit (FWISC) position on the rotor vibration properties in turbo generators. Different from the previous studies which focused on the influence of the short-circuit degree, this work pays much attention to the impact of the short-circuit position on the rotor unbalanced magnetic pull (UMP) properties and vibration characteristics. The theoretical UMP model is firstly deduced based on the analysis of the magnetic flux density (MFD) variation. Then, the finite element analysis (FEA) is performed to calculate the UMP data. Finally, the rotor vibrations are tested on a CS-5 prototype generator which has two poles and a rated capacity of 5 kVA. It is shown that the occurrence of FWISC will greatly increase the UMP as well as the rotor vibration. In addition to the short-circuit degree, the short-circuit position will also affect the UMP and vibration. The nearer the short-circuit position is to the big rotor teeth, the larger the UMP and vibration will be. The proposed study in this paper will be beneficial for the monitoring and diagnosis of FWISC faults.

Citation

Yuan, X. H., He, Y. L., Liu, M. Y., Wang, H., Wan, S. T., & Vakil, G. (2021). Impact of the Field Winding Interturn Short-Circuit Position on Rotor Vibration Properties in Synchronous Generators. Mathematical Problems in Engineering, 2021, Article 9236726. https://doi.org/10.1155/2021/9236726

Journal Article Type Article
Acceptance Date Nov 22, 2021
Online Publication Date Nov 30, 2021
Publication Date Nov 30, 2021
Deposit Date Nov 19, 2024
Publicly Available Date Nov 21, 2024
Journal Mathematical Problems in Engineering
Print ISSN 1024-123X
Electronic ISSN 1563-5147
Publisher Hindawi
Peer Reviewed Peer Reviewed
Volume 2021
Article Number 9236726
DOI https://doi.org/10.1155/2021/9236726
Public URL https://nottingham-repository.worktribe.com/output/35446184
Publisher URL https://onlinelibrary.wiley.com/doi/10.1155/2021/9236726

Files

Impact of the Field Winding Interturn Short-Circuit Position on Rotor Vibration Properties in Synchronous Generators (7.1 Mb)
PDF

Publisher Licence URL
https://creativecommons.org/licenses/by/4.0/

Copyright Statement
,is is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
