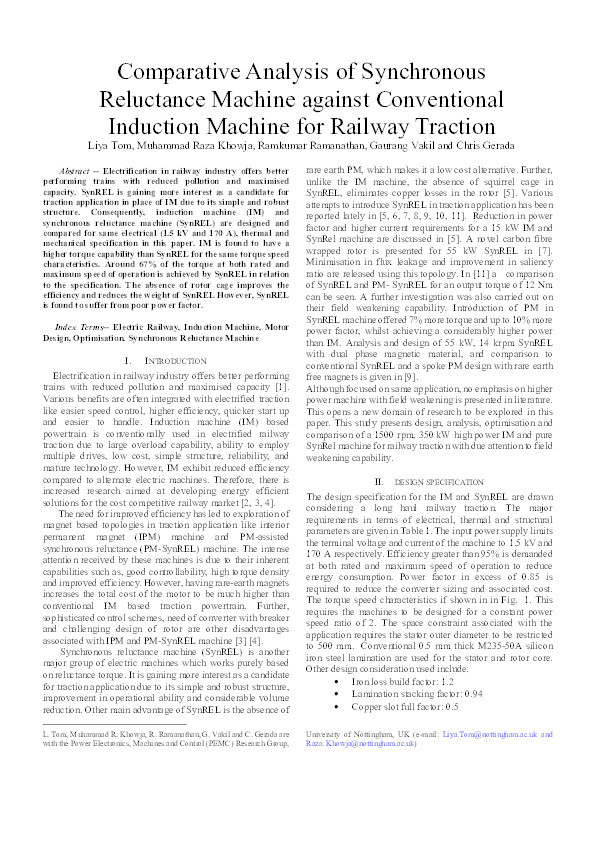

Comparative Analysis of Synchronous Reluctance Machine against Conventional Induction Machine for Railway Traction

Tom, Liya; Khowja, Muhammad Raza; Ramanathan, Ramkumar; Vakil, Gaurang; Gerada, Chris

Abstract

Electrification in railway industry offers better performing trains with reduced pollution and maximised capacity. SynREL is gaining more interest as a candidate for traction application in place of IM due to its simple and robust structure. Consequently, induction machine (IM) and synchronous reluctance machine (SynREL) are designed and compared for same electrical (1.5 kV and 170 A), thermal and mechanical specification in this paper. IM is found to have a higher torque capability than SynREL for the same torque speed characteristics. Around 67% of the torque at both rated and maximum speed of operation is achieved by SynREL in relation to the specification. The absence of rotor cage improves the efficiency and reduces the weight of SynREL However, SynREL is found to suffer from poor power factor.

Citation

Tom, L., Khowja, M. R., Ramanathan, R., Vakil, G., & Gerada, C. (2022). Comparative Analysis of Synchronous Reluctance Machine against Conventional Induction Machine for Railway Traction. In 2022 International Conference on Electrical Machines (ICEM 2022) (69-76). https://doi.org/10.1109/ICEM51905.2022.9910767

• Conference Name: 2022 International Conference on Electrical Machines, ICEM 2022
• Conference Location: Valencia, Spain
• Start Date: Sep 5, 2022
• End Date: Sep 8, 2022
• Acceptance Date: Jun 22, 2022
• Online Publication Date: Oct 13, 2022
• Publication Date: Sep 5, 2022
• Deposit Date: Jan 6, 2023
• Publicly Available Date: Jan 6, 2023
• Publisher: IEEE
• Pages: 69-76
• Series ISSN: 2381-4802
• Book Title: 2022 International Conference on Electrical Machines (ICEM 2022)
• ISBN: 9781665414333
• DOI: https://doi.org/10.1109/ICEM51905.2022.9910767
• Keywords: Electric Railway, Induction Machine, Motor Design, Optimisation, Synchronous Reluctance Machine
• Public URL: https://nottingham-repository.worktribe.com/output/12888306
