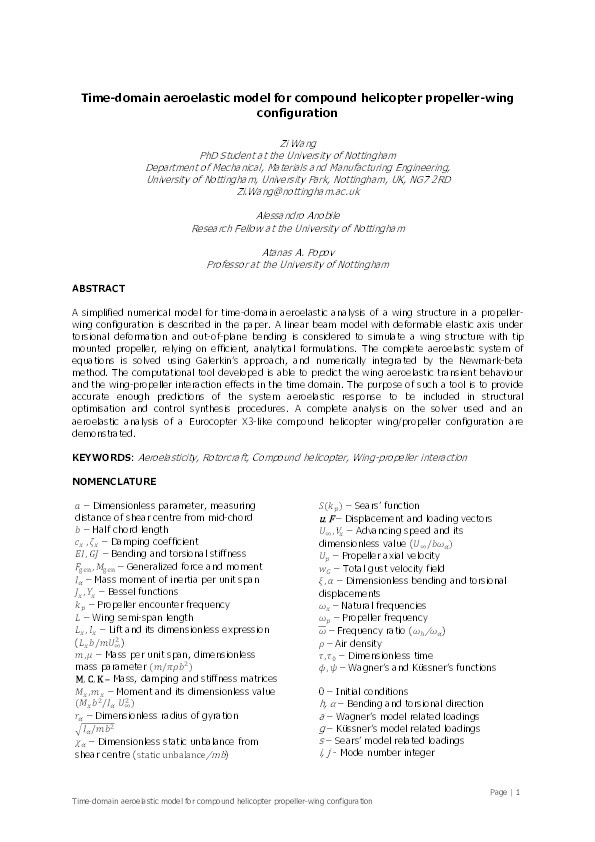

Time-domain aeroelastic model for compound helicopter propeller-wing configuration

Wang, Zi; Anobile, Alessandro; Popov, Atanas A.

Authors

Zi Wang

Alessandro Anobile

ATANAS POPOV ATANAS.POPOV@NOTTINGHAM.AC.UK
Professor of Engineering Dynamics



Abstract

A simplified numerical model for time-domain aeroelastic analysis of a wing structure in a propeller-wing configuration is described in the paper. A linear beam model with deformable elastic axis under torsional deformation and out-of-plane bending is considered to simulate a wing structure with tip mounted propeller, relying on efficient, analytical formulations. The complete aeroelastic system of equations is solved using Galerkin’s approach, and numerically integrated by the Newmark-beta method. The computational tool developed is able to predict the wing aeroelastic transient behaviour and the wing-propeller interaction effects in the time domain. The purpose of such a tool is to provide accurate enough predictions of the system aeroelastic response to be included in structural optimisation and control synthesis procedures. A complete analysis on the solver used and an aeroelastic analysis of a Eurocopter X3-like compound helicopter wing/propeller configuration are demonstrated.

Citation

Wang, Z., Anobile, A., & Popov, A. A. (2017, October). Time-domain aeroelastic model for compound helicopter propeller-wing configuration. Paper presented at Aerospace Europe CEAS 2017 Conference, Bucharest, Romania

Presentation Conference Type Conference Paper (unpublished)
Conference Name Aerospace Europe CEAS 2017 Conference
Conference Location Bucharest, Romania
Start Date Oct 2, 2017
End Date Oct 6, 2017
Deposit Date Jul 27, 2018
Publicly Available Date Mar 29, 2024
Peer Reviewed Not Peer Reviewed
Keywords Aeroelasticity, Rotorcraft, Compound helicopter, Wing-propeller interaction
Public URL https://nottingham-repository.worktribe.com/output/888511
