Extracting structure functions of power devices in induction motor drives
Aliyu, Attahir Murtala; Castellazzi, Alberto
Authors
Alberto Castellazzi
Abstract
This paper proposes the extraction of structure function from power devices on-board induction motor drives. It puts forward the issues and methodology related to on-board measurement of the cooling curve and derivation of the structure function during idle times in induction motor drives for maintenance purposes. The structure function uses the thermal resistances and capacitances in the Cauer form to identify changes in the device structure. The advantage of the structure function is that it does not only reveal the value but also the location of the thermal resistance and capacitance in the heat flow path. The novelty in this work is the methodology used to achieve the measurement of the cooling curve and the derivation of the structure function despite issues related to freewheeling current due to energy stored as a result of motor inductance.
Citation
Aliyu, A. M., & Castellazzi, A. (2016). Extracting structure functions of power devices in induction motor drives.
Conference Name | 22nd International Workshop on Thermal Investigations of ICs and Systems (THERMINIC 2016) |
---|---|
End Date | Sep 23, 2016 |
Acceptance Date | Jul 15, 2016 |
Publication Date | Sep 22, 2016 |
Deposit Date | Feb 8, 2017 |
Publicly Available Date | Feb 8, 2017 |
Peer Reviewed | Peer Reviewed |
Keywords | Temperature measurement, Current measurement, Heating, Voltage measurement, Temperature sensors, Thermal resistance, Switches |
Public URL | https://nottingham-repository.worktribe.com/output/809704 |
Publisher URL | http://ieeexplore.ieee.org/document/7749040/ |
Related Public URLs | http://www.therminic2016.eu/ |
Additional Information | © 2016 IEEE. Personal use of this material is permitted. Permission from IEEE must be obtained for all other uses, in any current or future media, including reprinting/republishing this material for advertising or promotional purposes, creating new collective works, for resale or redistribution to servers or lists, or reuse of any copyrighted component of this work in other works. |
Files

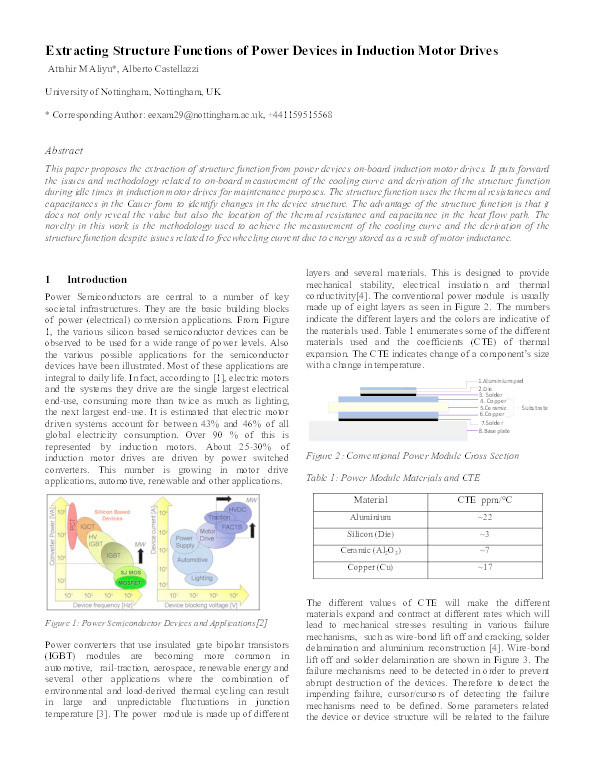

Extracting structure functions of power devices in induction motor drives.pdf
