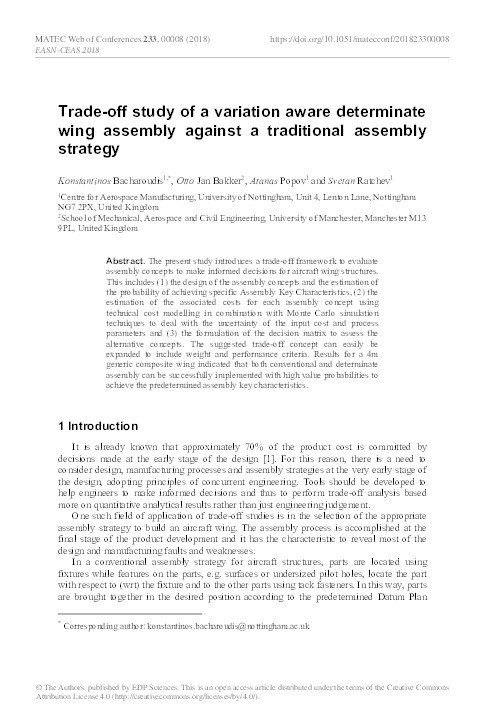

Trade-off study of a variation aware determinate wing assembly against a traditional assembly strategy

Bacharoudis, Konstantinos; Bakker, Otto Jan; Popov, Atanas; Ratchev, Svetan

Abstract

The present study introduces a trade-off framework to evaluate assembly concepts to make informed decisions for aircraft wing structures. This includes (1) the design of the assembly concepts and the estimation of the probability of achieving specific Assembly Key Characteristics, (2) the estimation of the associated costs for each assembly concept using technical cost modelling in combination with Monte Carlo simulation techniques to deal with the uncertainty of the input cost and process parameters and (3) the formulation of the decision matrix to assess the alternative concepts. The suggested trade-off concept can easily be expanded to include weight and performance criteria. Results for a 4m generic composite wing indicated that both conventional and determinate assembly can be successfully implemented with high value probabilities to achieve the predetermined assembly key characteristics.

Citation

Bacharoudis, K., Bakker, O. J., Popov, A., & Ratchev, S. Trade-off study of a variation aware determinate wing assembly against a traditional assembly strategy. Presented at 8th EASN-CEAS International Workshop on Manufacturing for Growth & Innovation, Glasgow, UK

• Presentation Conference Type: Conference Paper (published)
• Conference Name: 8th EASN-CEAS International Workshop on Manufacturing for Growth & Innovation
• Acceptance Date: May 22, 2018
• Online Publication Date: Nov 21, 2018
• Publication Date: 2018
• Deposit Date: Nov 26, 2018
• Publicly Available Date: Nov 26, 2018
• Journal: MATEC Web of Conferences
• Electronic ISSN: 2261-236X
• Publisher: EDP Sciences
• Peer Reviewed: Peer Reviewed
• Volume: 233
• Article Number: 00008
• DOI: https://doi.org/10.1051/matecconf/201823300008
• Public URL: https://nottingham-repository.worktribe.com/output/1307970
• Publisher URL: https://www.matec-conferences.org/articles/matecconf/abs/2018/92/matecconf_easn_ceas2018_00008/matecconf_easn_ceas2018_00008.html
• Contract Date: Nov 26, 2018
