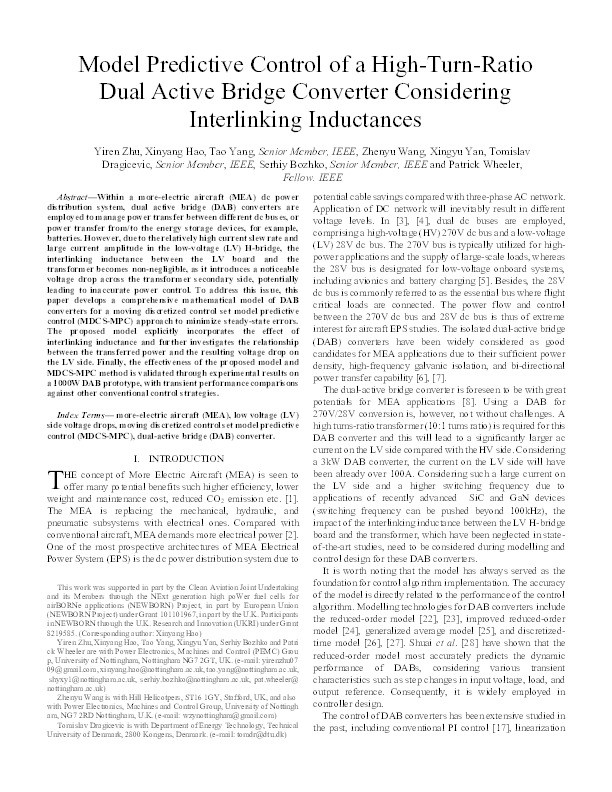

Model Predictive Control of a High-Turn-Ratio Dual Active Bridge Converter Considering Interlinking Inductances

Zhu, Yiren; Hao, Xinyang; Yang, Tao; Wang, Zhenyu; Yan, Xingyu; Dragicevic, Tomislav; Bozhko, Serhiy; Wheeler, Patrick

Abstract

Within a more-electric aircraft (MEA) dc power distribution system, dual active bridge (DAB) converters are employed to manage power transfer between different dc buses, or power transfer from/to the energy storage devices, for example, batteries. However, due to the relatively high current slew rate and large current amplitude in the low-voltage (LV) H-bridge, the interlinking inductance between the LV board and the transformer becomes non-negligible, as it introduces a noticeable voltage drop across the transformer secondary side, potentially leading to inaccurate power control. To address this issue, this paper develops a comprehensive mathematical model of DAB converters for a moving discretized control set model predictive control (MDCS-MPC) approach to minimize steady-state errors. The proposed model explicitly incorporates the effect of interlinking inductance and further investigates the relationship between the transferred power and the resulting voltage drop on the LV side. Finally, the effectiveness of the proposed model and MDCS-MPC method is validated through experimental results on a 1000W DAB prototype, with transient performance comparisons against other conventional control strategies.

Citation

Zhu, Y., Hao, X., Yang, T., Wang, Z., Yan, X., Dragicevic, T., Bozhko, S., & Wheeler, P. (2025). Model Predictive Control of a High-Turn-Ratio Dual Active Bridge Converter Considering Interlinking Inductances. IEEE Journal of Emerging and Selected Topics in Power Electronics, https://doi.org/10.1109/JESTPE.2025.3582152

• Journal Article Type: Article
• Acceptance Date: Jun 20, 2025
• Online Publication Date: Jun 20, 2025
• Publication Date: Jun 20, 2025
• Deposit Date: Jul 10, 2025
• Publicly Available Date: Jul 11, 2025
• Journal: IEEE Journal of Emerging and Selected Topics in Power Electronics
• Print ISSN: 2168-6777
• Electronic ISSN: 2168-6785
• Publisher: Institute of Electrical and Electronics Engineers
• Peer Reviewed: Peer Reviewed
• DOI: https://doi.org/10.1109/JESTPE.2025.3582152
• Keywords: Inductance , Transformers , Voltage , Mathematical models , Low voltage , Load flow , Steady-state , Predictive control , Switching frequency , Switches , more-electric aircraft (MEA) , low voltage (LV) side voltage drops , moving discretized control set model predictive control (MDCS-MPC) , dual-active bridge (DAB) converter
• Public URL: https://nottingham-repository.worktribe.com/output/50705453
• Publisher URL: https://ieeexplore.ieee.org/document/11045908/
• Additional Information: For the purpose of open access, the author(s) has applied a Creative Commons Attribution (CC BY) license to any Accepted Manuscript version arising.
