Experimental Investigation of a MopFan-Based Photocatalytic Air Purification Device

Tapia-Brito, Emmanuel; Riffat, James; Wang, Yixin; Ghaemmaghami, Amir M.; Coleman, Christopher M.; Riffat, Saffa

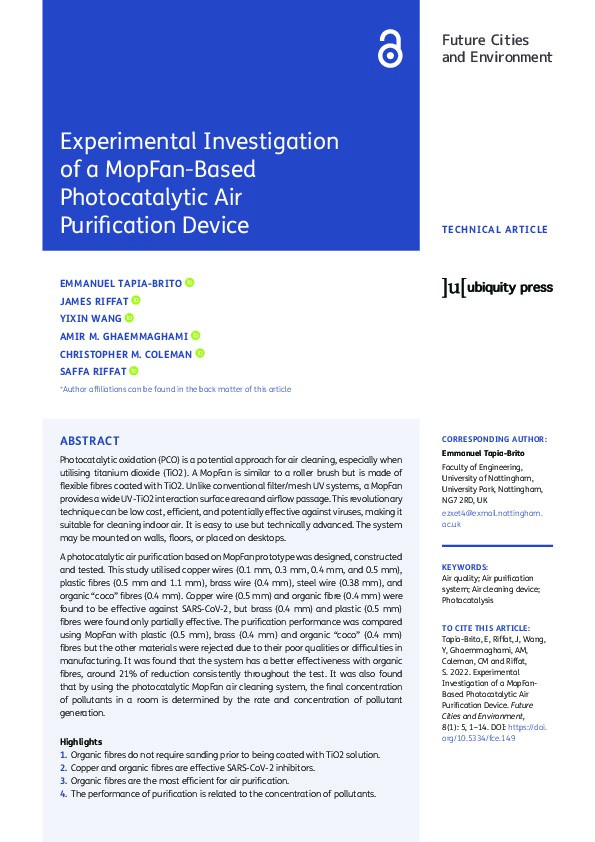

Experimental Investigation of a MopFan-Based Photocatalytic Air Purification Device Thumbnail


Authors

James Riffat

Yixin Wang

CHRISTOPHER COLEMAN CHRISTOPHER.COLEMAN@NOTTINGHAM.AC.UK
Assistant Professor of Infection Immunology

SAFFA RIFFAT saffa.riffat@nottingham.ac.uk
Professor of Sustainable Energy Systems



Abstract

Photocatalytic oxidation (PCO) is a potential approach for air cleaning, especially when utilising titanium dioxide (TiO2). A MopFan is similar to a roller brush but is made of flexible fibres coated with TiO2. Unlike conventional filter/mesh UV systems, a MopFan provides a wide UV-TiO2 interaction surface area and airflow passage. This revolutionary technique can be low cost, efficient, and potentially effective against viruses, making it suitable for cleaning indoor air. It is easy to use but technically advanced. The system may be mounted on walls, floors, or placed on desktops. A photocatalytic air purification based on MopFan prototype was designed, constructed and tested. This study utilised copper wires (0.1 mm, 0.3 mm, 0.4 mm, and 0.5 mm), plastic fibres (0.5 mm and 1.1 mm), brass wire (0.4 mm), steel wire (0.38 mm), and organic “coco” fibres (0.4 mm). Copper wire (0.5 mm) and organic fibre (0.4 mm) were found to be effective against SARS-CoV-2, but brass (0.4 mm) and plastic (0.5 mm) fibres were found only partially effective. The purification performance was compared using MopFan with plastic (0.5 mm), brass (0.4 mm) and organic “coco” (0.4 mm) fibres but the other materials were rejected due to their poor qualities or difficulties in manufacturing. It was found that the system has a better effectiveness with organic fibres, around 21% of reduction consistently throughout the test. It was also found that by using the photocatalytic MopFan air cleaning system, the final concentration of pollutants in a room is determined by the rate and concentration of pollutant generation. Highlights 1. Organic fibres do not require sanding prior to being coated with TiO2 solution. 2. Copper and organic fibres are effective SARS-CoV-2 inhibitors. 3. Organic fibres are the most efficient for air purification. 4. The performance of purification is related to the concentration of pollutants.

Journal Article Type Article
Acceptance Date May 3, 2022
Online Publication Date May 12, 2022
Publication Date May 12, 2022
Deposit Date Aug 19, 2022
Publicly Available Date Aug 19, 2022
Journal Future Cities and Environment
Electronic ISSN 2363-9075
Publisher Ubiquity Press, Ltd.
Peer Reviewed Peer Reviewed
Volume 8
Issue 1
DOI https://doi.org/10.5334/fce.149
Keywords Management, Monitoring, Policy and Law; Urban Studies; Architecture; Geography, Planning and Development
Public URL https://nottingham-repository.worktribe.com/output/8049410
Publisher URL https://futurecitiesandenvironment.com/articles/10.5334/fce.149/
